Utilizing advanced modular design technology, our folding houses offer full customization with flexible sizing to meet specific needs. The unique foldable structure significantly optimizes logistics efficiency. For instance, a 100-square-meter residence can be assembled from just three units and transported in a single truckload, drastically reducing shipping costs.
Built on modular technology, our folding houses are fully customizable in size! Best of all, they offer extreme compactness: a spacious 100 sqm home is assembled from just three units. Transported in a single truckload, it saves you significant shipping costs while ensuring rapid deployment.
|
General Specifications of Modular Folding Container House |
| Item | Standard Specifications |
| Product Name | Folding Container House / Foldable Integrated House / Foldable Prefab House |

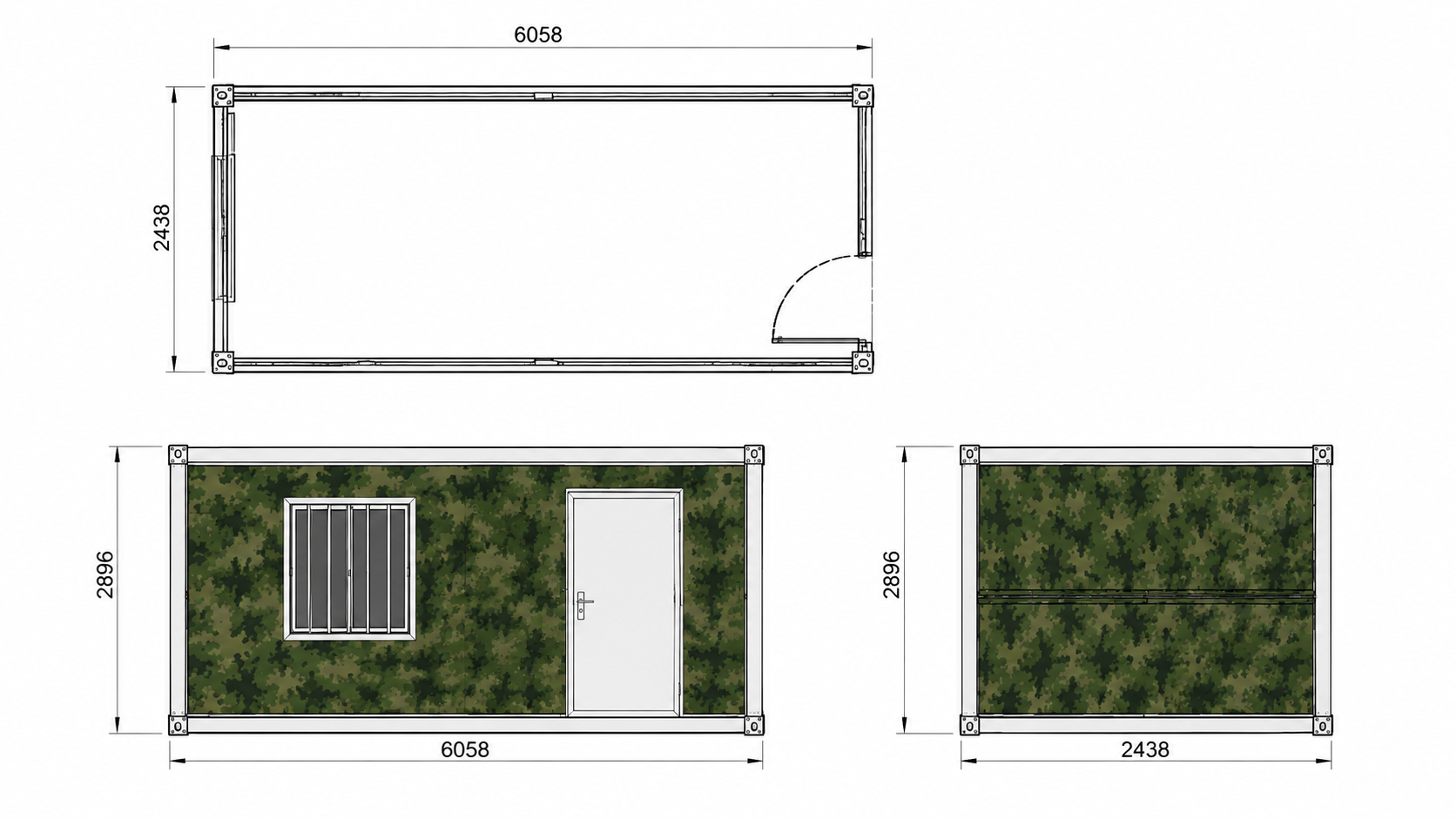

| Standard Dimensions | 5800×2480×2500mm / 5900×2430×2500mm / 6000×3000×2800mm |
| Folded Height | Approx. 350-450mm, convenient for transportation and stacking |
| Building Structure | Light steel frame structure, integral foldable modular design |
| Main Frame | Galvanized square tube / Cold-formed steel / Sprayed steel structure |
| Wall Materials | Optional: Rock wool sandwich panel, Glass wool sandwich panel, EPS sandwich panel, PU sandwich panel |
| Wall Panel Thickness | 50mm / 75mm / 100mm, customizable on request |
| Roof Materials | Color steel sandwich panel / Galvanized steel sheet + Insulation layer |
| Floor Structure | Steel base frame + Fireproof board / Cement fiber board + PVC floor leather |
| Door & Window Configuration | Anti-theft door / Aluminum alloy window / Plastic-steel window, customizable by function |
| Electrical System | Pre-installed lighting, sockets, switches, distribution box, air-conditioning sockets |
| Fire Rating | Standard: Class B1 flame retardant; Class A fire rating available with rock wool panels |
| Wind Resistance | Typically meets 8-10 level wind resistance, subject to structural reinforcement design |
| Seismic Performance | Designed for 7-8 degree seismic resistance |
| Service Life | Approx. 10-20 years, depending on materials, anti-corrosion treatment and application environment |
| Installation Method | Crane unfolding / Manual-assisted unfolding / Bolt fastening |
| Installation Time | Single unit typically unfolded in 10-30 minutes, ready for use after power and water connection |
| Transportation Method | Can be stacked in multiple layers after folding, saving transportation space |
| Application Scenarios | Temporary offices, construction site dormitories, guard rooms, emergency shelters, park supporting facilities, storage houses |
| The images and specifications shown are for reference only. The final effect and implementation plan are subject to the actual execution. | |
