Foldable Container House

Foldable Container House is an innovative modular building solution featuring a foldable structure, efficient transportation, and rapid installation. With factory-prefabricated components and a space-saving design, it can be quickly deployed on-site, reducing logistics costs and construction time.

• Space-saving Folding Design : Prefabricated, rapid assembly.

• Rapid Installation : Custom layouts and expansions.

• Flexible Applications : Modern, clean aesthetic.

• Durable Modular Structure : Windproof, insulated, long-lasting.

Introduction

What is a prefabricated foldable container house?

Prefabricated foldable container house is modular prefab building. Its steel frame, electrics and interiors are factory-made. It folds for compact transport and unfolds rapidly on site.

Compared with traditional temporary buildings, it cuts logistics cost, speeds up installation and can be reused. Flexible combinations suit dorms, offices and emergency shelters for construction sites and temporary projects, cost-effective and eco-friendly.

Foldable Container House Design

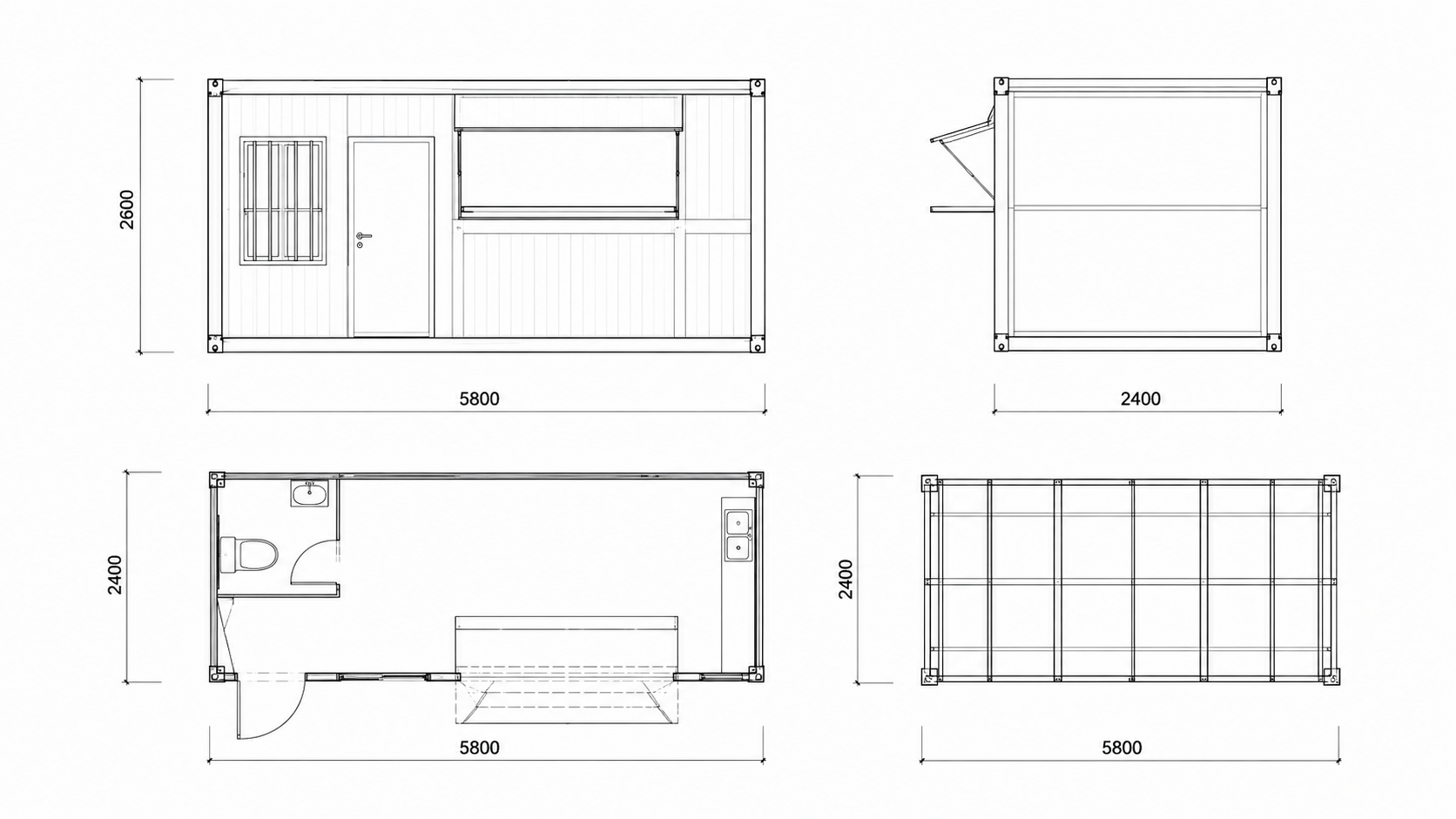

As the most widely used classic size, it boasts a spacious interior of approximately 5800×2500×2560 mm after unfolding. When folded, it is merely 0.4 meters thick, drastically cutting transportation costs.

Benefiting from its X-shaped folding structure, 90% of the production work is completed through factory prefabrication. On-site installation only involves hoisting wall panels and fastening them with bolts, enabling ultra-fast assembly and significant labor savings.

Flexibly configurable as offices, living quarters or restrooms, it serves as an ideal modern housing solution for frequently relocated projects such as construction sites and mining camps.

★What are the advantages of Foldable Container House ?

1、Modular Design

It inherits the modular feature of standard containers. Equipped with precision hinges and locking mechanisms, it can be folded compactly and deployed quickly on-site.

2、Optimized Logistics

Our foldable container cuts 80% of transportation volume, boosting transport efficiency by over 3 times and greatly lowering logistics expenses.

3、Rapid On-site Deployment

All units are fully prefabricated in factories with reliable structure. Upon delivery, each box only takes 15 minutes to unfold from folded compact form into a sturdy, fully functional living space.

★ Foldable Container House Installation: Quick Deployment, Instant Living

All components of the foldable container house are prefabricated and assembled in the factory. You can quickly complete the installation on-site by following these four simple steps

1、Use a crane to hook the roof. Lift slowly until the house unfolds completely, then hold the crane steady.

2、Unfold the front and rear walls. Push them from inside to position them upright correctly.

3、Secure the structure with bolts. Prefabricated bolt holes are on the vertical columns, and sufficient bolts will be provided.

4、Install the door lock (not pre-installed to avoid ceiling damage during folding). Remove it before moving/folding the house.

Specification

General Specifications of Modular Folding Container House

Item	Standard Specifications
Product Name	Folding Container House / Foldable Integrated House / Foldable Prefab House
Standard Dimensions	5800×2480×2500mm / 5900×2430×2500mm / 6000×3000×2800mm
Folded Height	Approx. 350-450mm, convenient for transportation and stacking
Building Structure	Light steel frame structure, integral foldable modular design
Main Frame	Galvanized square tube / Cold-formed steel / Sprayed steel structure
Wall Materials	Optional: Rock wool sandwich panel, Glass wool sandwich panel, EPS sandwich panel, PU sandwich panel
Wall Panel Thickness	50mm / 75mm / 100mm, customizable on request
Roof Materials	Color steel sandwich panel / Galvanized steel sheet + Insulation layer
Floor Structure	Steel base frame + Fireproof board / Cement fiber board + PVC floor leather
Door & Window Configuration	Anti-theft door / Aluminum alloy window / Plastic-steel window, customizable by function
Electrical System	Pre-installed lighting, sockets, switches, distribution box, air-conditioning sockets
Fire Rating	Standard: Class B1 flame retardant; Class A fire rating available with rock wool panels
Wind Resistance	Typically meets 8-10 level wind resistance, subject to structural reinforcement design
Seismic Performance	Designed for 7-8 degree seismic resistance
Service Life	Approx. 10-20 years, depending on materials, anti-corrosion treatment and application environment
Installation Method	Crane unfolding / Manual-assisted unfolding / Bolt fastening
Installation Time	Single unit typically unfolded in 10-30 minutes, ready for use after power and water connection
Transportation Method	Can be stacked in multiple layers after folding, saving transportation space
Application Scenarios	Temporary offices, construction site dormitories, guard rooms, emergency shelters, park supporting facilities, storage houses
The images and specifications shown are for reference only. The final effect and implementation plan are subject to the actual execution.

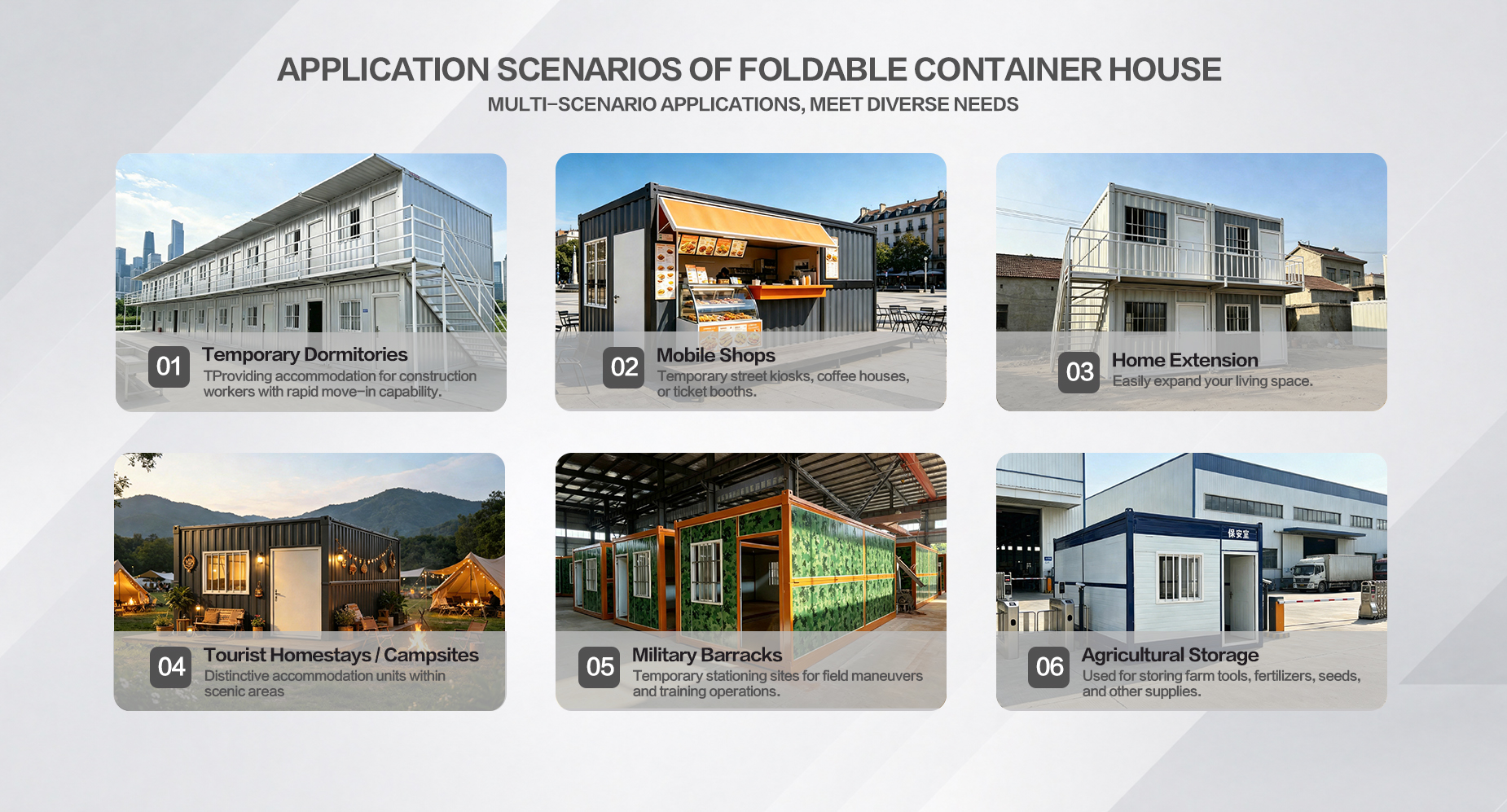

Application Scenarios

FOLDING CONTAINER HOUSE APPLICATION SCENARIOS

FLEXIBLE SOLUTIONS, ADAPT TO MULTIPLE NEEDS

——Folding container houses feature fast deployment, space-saving design and excellent mobility, making them an ideal choice for temporary and emergency accommodation projects. With a foldable structure and modular design, they can be quickly transported, expanded and installed, and are widely used in construction camps, emergency shelters, scenic area facilities, temporary offices and other application scenarios.
