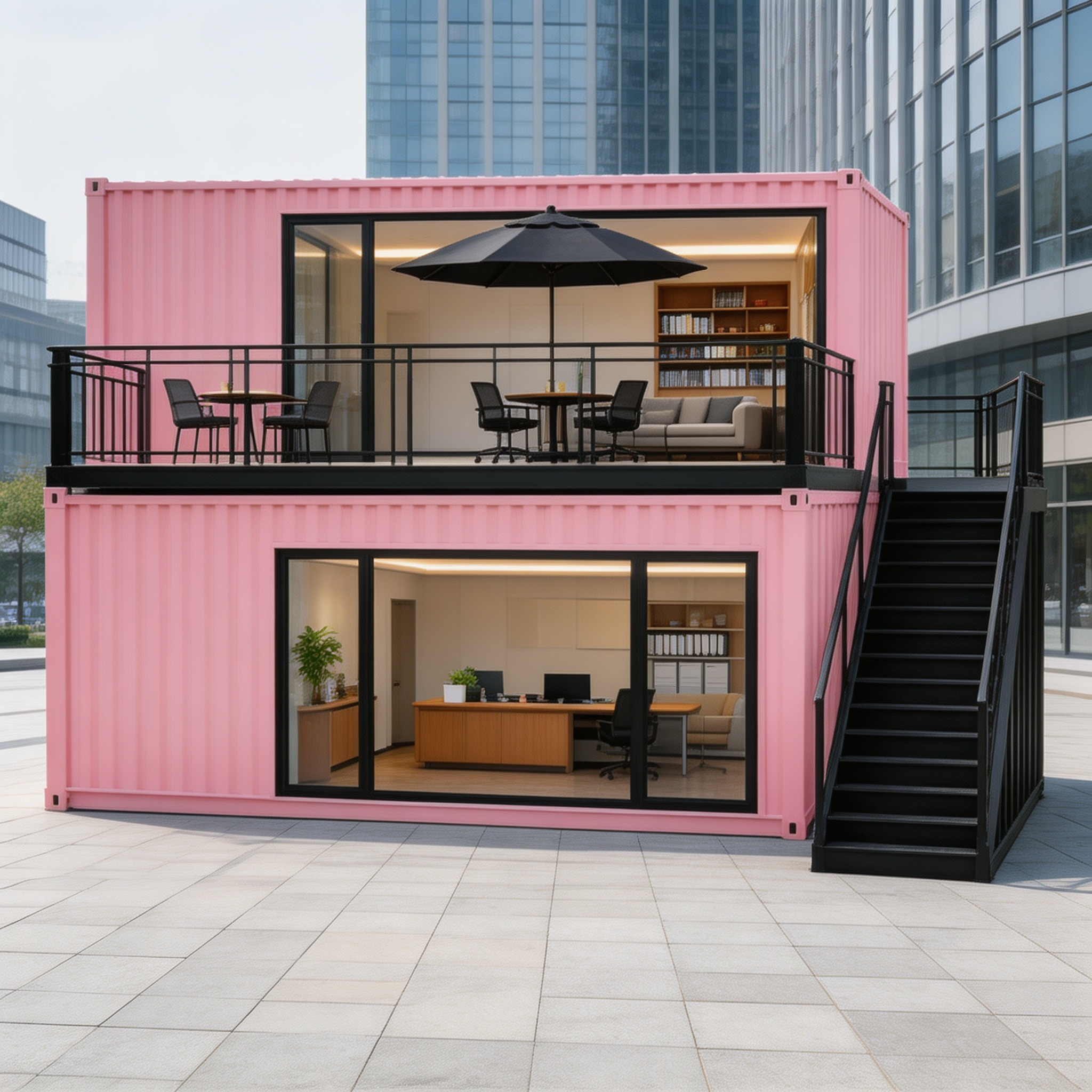

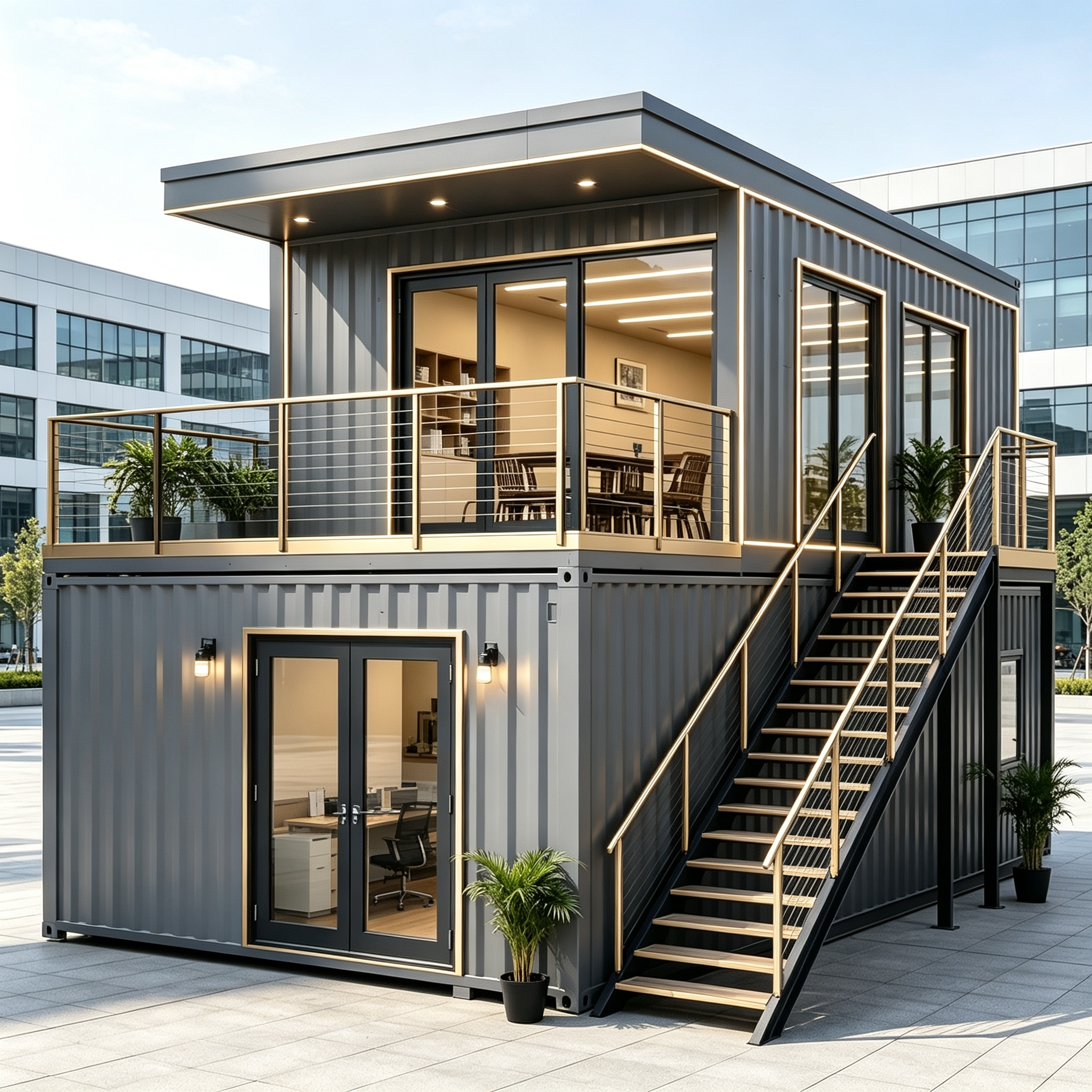

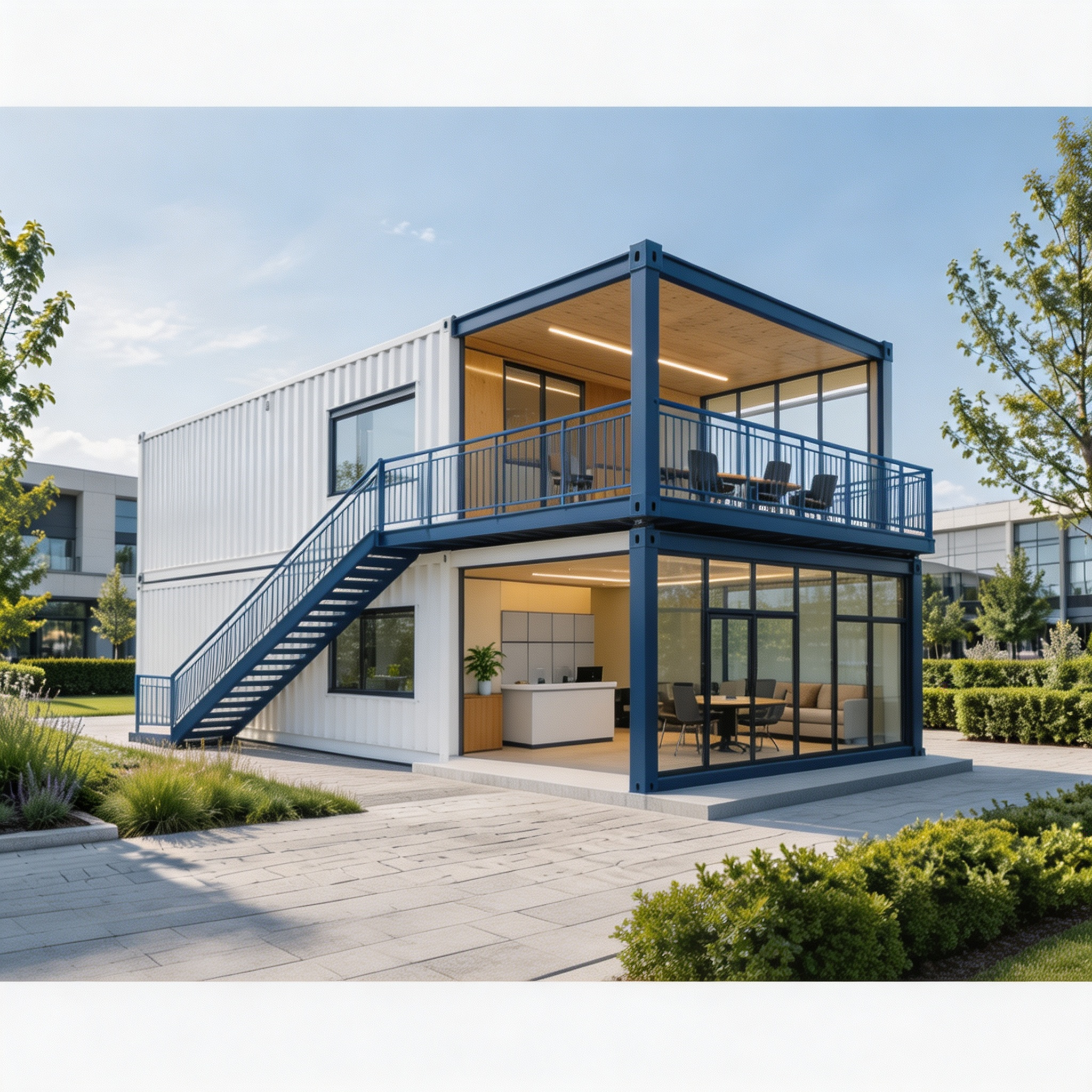

Quick-Assembly Container House (also known as a flat-pack container house) is a premium modular building system engineered for efficient flat-pack transport. Enabling rapid construction through advanced prefabrication and bolted assembly, it features a sleek exterior with optional large glass facades for a modern aesthetic. It is the ideal solution for overseas camps, executive project offices, and high-end temporary structures.
The Quick-Assembly Container House is constructed primarily from a high-strength, lightweight steel frame. Engineered for sustainability and efficiency, it offers exceptional thermal insulation, effortless disassembly, and hassle-free transportation. With a durable service life of 10 to 20 years and excellent resistance to earthquakes and typhoons, this versatile system thrives in diverse terrains—from hillsides and deserts to grasslands and riverbanks. Fully customizable to meet specific client requirements, it delivers outstanding year-round comfort. All components are prefabricated in the factory to drastically slash on-site construction timelines while minimizing environmental impact.
| Category | External Dimensions | Specification |
| Basic Characteristics | External Dimension | 6000mm (L) × 3000mm (W) × 2890mm (H) |
| Internal Dimensions | 5850mm (L) × 2850mm (W) × 2520mm (H) | |
| Net Weight | Approx. 1100 KG | |
| Frame Structure | Column | 2.75 Special-Shaped Steel |
| Bottom Beam | 2.0 Special-Shaped Steel | |
| Top Beam | 2.0 Special-Shaped Steel | |
| Bottom Beam Square Tube Crossmember | 1.5 Q235 Galvanized Steel Pipe | |
| Top Beam Square Tube Crossmember | 1.7 & 1.2 Q235 Galvanized Steel Pipe | |
| Wall Panels | All Exterior/End Panels | 50mm Rock Wool Sandwich Panel (0.286) |
| Roof | Corrugated Sheet | 980# Corrugated Tile (0.526) |
| nsulation Layer | 30mm Glass Wool Blanket | |
| Ceiling | Ceiling Panel | 831# Corrugated Sheet (0.256) |
| Floor | Floor Panel | 18mm Cement Fiber Board |
| Door | Door | Steel Door; Inner Frame Size: 980mm × 2030mm |
| Window | Window | UPVC Sliding Window (White, Single-Slide), 1100mm × 930mm |
| The images and specifications shown are for reference only. The final effect and implementation plan are subject to the actual execution. | ||
