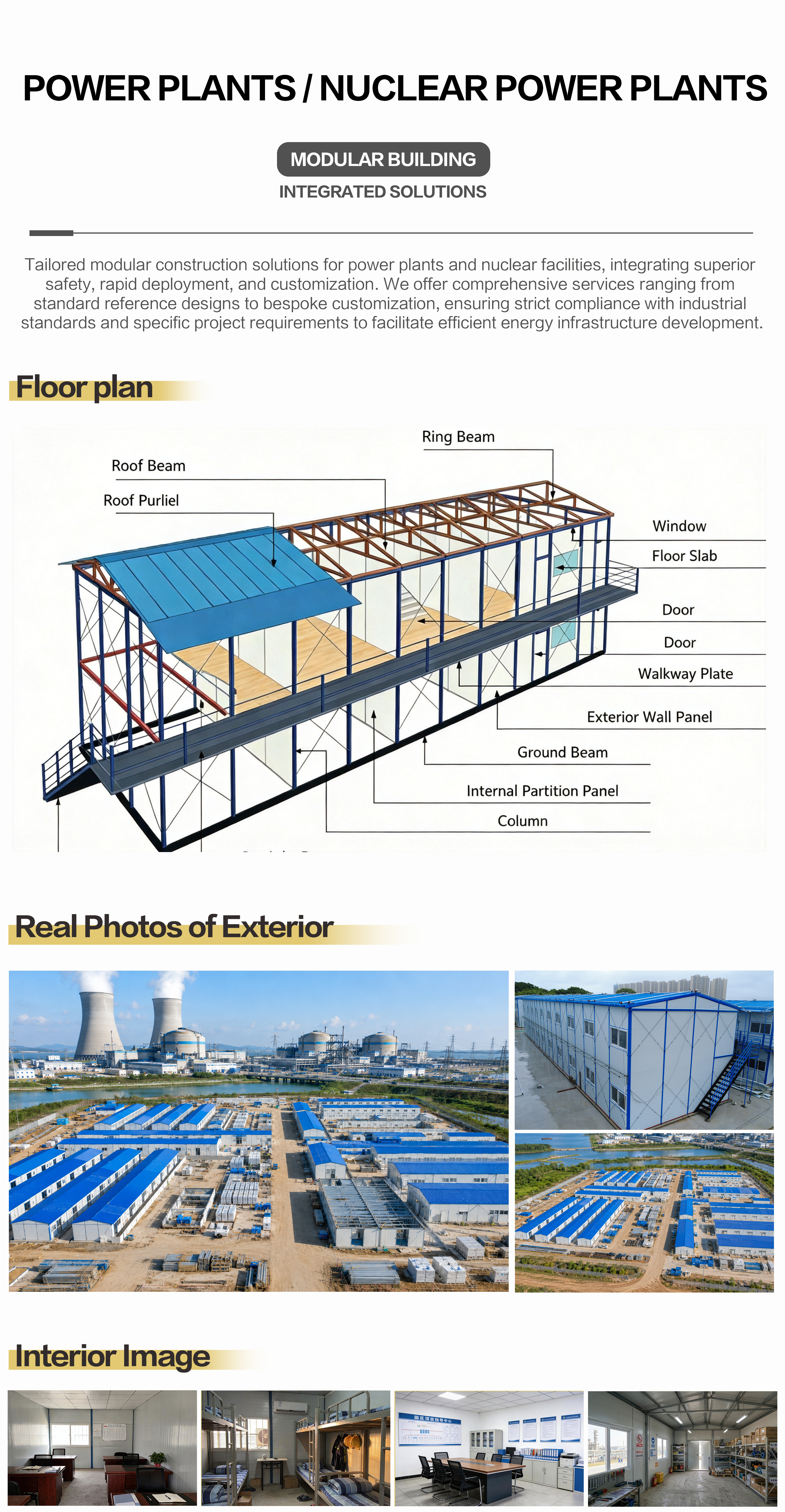

POWER PLANTS/NUCLEAR POWER PLANTS
MODULAR BUILDING
INTEGRATED SOLUTIONS
Tailored modular construction solutions for power plants and nuclear facilities, integrating superior safety, rapid deployment, and customization. We offer comprehensive services ranging from standard reference designs to bespoke customization, ensuring strict compliance with industrial standards and specific project requirements to facilitate efficient energy infrastructure development.

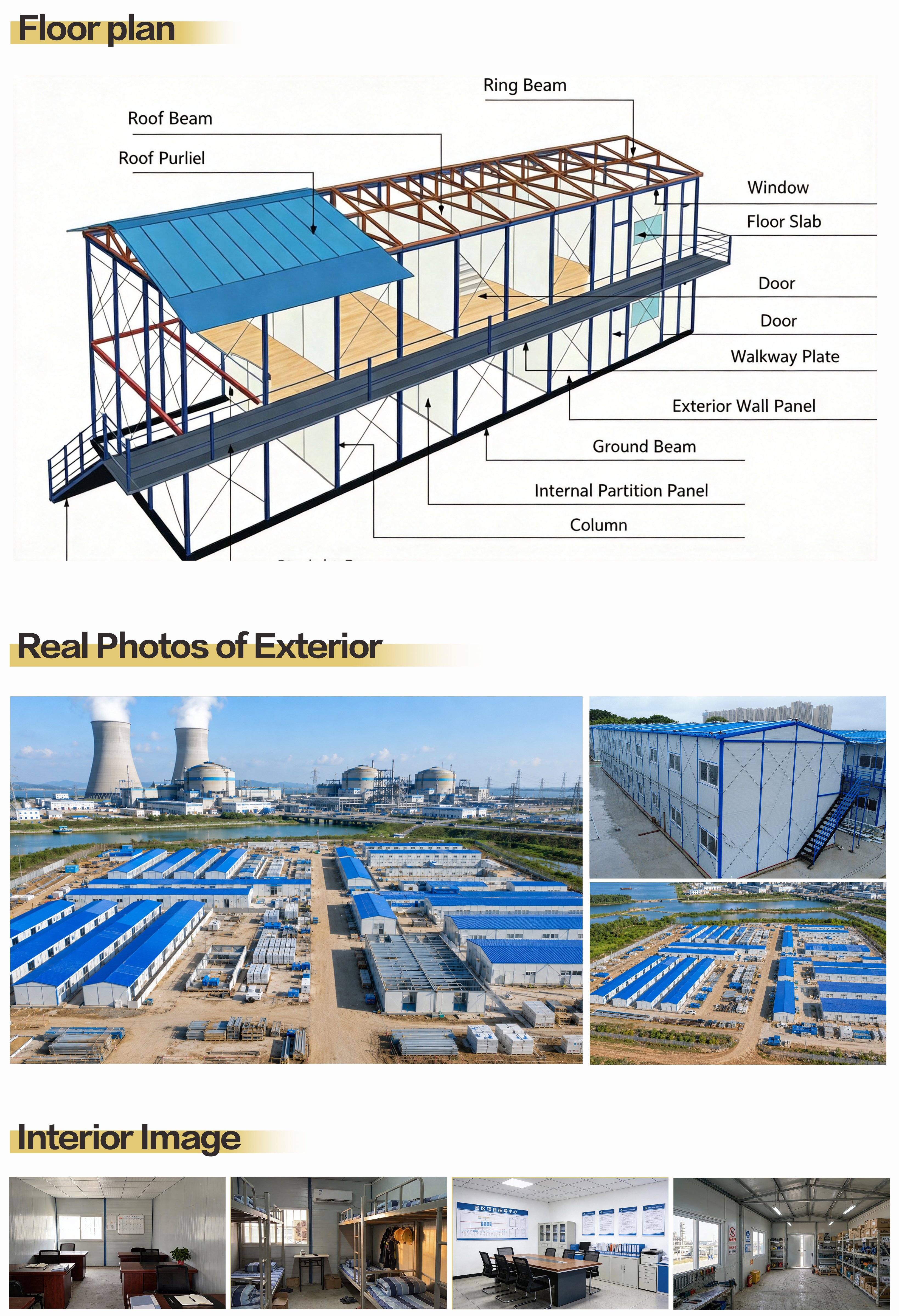

| K-Type Prefab House Double-Slope Roof Material List |
| NO. | Component name | Material | A material thickness | B material thickness | Remark |
| 1 | Column (Single-Storey) | Double 8# C‑channel | 1.3mm | 1.3mm | Spray coating |
| 2 | Column (Double-Storey) | Double 8# C‑channel | 1.7mm | 1.5mm | Spray coating |
| 3 | Column (Three-Storey) | Double 8# C‑channel | 2.0mm | 2.0mm | Spray coating |
| 4 | Ground Beam | 8# C-Channel | 1.3mm | 1.3mm | Spray coating |
| 5 | Ring Beam | 8# C-Channel | 1.2mm | 1.2mm | Spray coating |
| 6 | Straight beam（3K） | 350mm Truss Beam | C80*1.4mm +Web Bracing C50*1.2mm | C80*1.4mm +Web Bracing C50*1.2mm | Galvanized |
| 7 | Straight beam（4K） | 350mm Truss Beam | C80×1.7mm + Web Bracing C50×1.2mm | C80×1.7mm + Web Bracing C50×1.2mm | Galvanized |
| 8 | A-Frame Beam (3K) | Gable Truss | C80×1.2mm + C80×1.2mm + Web Bracing C50×1.2mm | C80×1.2mm + C80×1.2mm + Web Bracing C50×1.2mm | Galvanized |
| 9 | A-Frame Beam (4K) | Gable Truss | C80×1.4mm + 1.2mm + Web Bracing C50×1.2mm | C80×1.4mm + 1.2mm + Web Bracing C50×1.2mm | Galvanized |
| 10 | Floor Purlin | 8# C-Channel | 1.1mm | 1.1mm | Galvanized |
| 11 | Roof Purlin | T-section steel | 1.4mm | 1.4mm | Galvanized |
| 12 | Horizontal Bracing | T-section steel | 1.4mm | 1.4mm | Galvanized |
| 13 | Walkway Bracket | 8# C-Channel | 1.3mm | 1.3mm | Spray coating |
| 14 | Stair Bracket | 8# C-Channel | 1.3mm | 1.3mm | Spray coating |
| 15 | Staircase | 16# C-Channel 1.9mm | 15 steps staircase + 1.9mm checkered steel plate | 15 steps staircase + 1.9mm checkered steel plate | Spray coating |
| 16 | Walkway Board | Patterned Steel Sheet | 2.0mm Checkered Steel Plate + 1.0mm Square Tube | 2.0mm Checkered Steel Plate + 1.0mm Square Tube | Spray coating |
| 17 | Railing | Square Tube | Square tube 30×1.0mm + Angle steel 40# | Square tube 30×1.0mm + Angle steel 40# | Spray coating |
| 18 | Handrail | Square Tube | 30×1.0mm Square Tube | 30×1.0mm Square Tube | Spray coating |
| 19 | Canopy Frame | Square Tube | 30×1.0mm Square Tube | ||
| 20 | Floor Deck | Wood Plywood | 13.5mm | 13.5mm | |
| 21 | Interior & Exterior Wall Panels | 950#50mm Rock Wool Panel | Double sided 0.15mm | Double sided 0.15mm | |
| 22 | Roof Tile | 950#50mm Rock Wool Panel | Roof sheet 0.236mm + Wall panel 0.15mm | Roof sheet 0.236mm + Wall panel 0.15mm | |
| 23 | Door | 950#50mm Rock Wool Panel | Double side 0.19mm | Integrated Door Set | |
| 24 | Window | Plastic Steel Sliding Window | Flush Joint + Window Edge Trim | Snap-on Type |
| The images and specifications shown are for reference only. The final effect and implementation plan are subject to the actual execution. |
